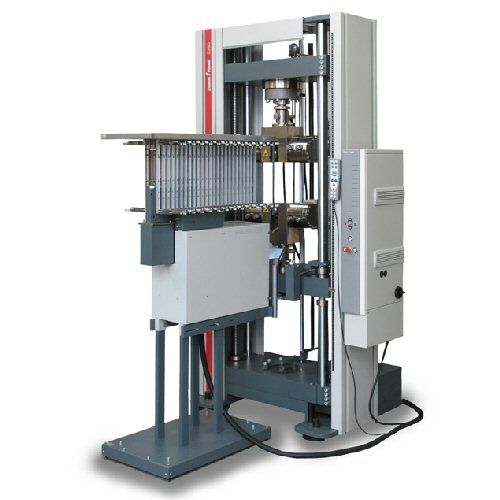

Testing unit roboTest F

For automated tensile tests on non-rigid specimens Industries • - Films • - Textiles Type of test • - Tensile Specimen range • - Non-rigid specimens Standards • - ISO 6892 • - ISO 527 • - ASTM D638 The perfect system for films and textiles The roboTest F (clamp) robotic testing system is designed for non-rigid specimens such as films, textiles, and non-wovens. By using the appropriate specimen grips, metal and plastic specimens and wires can also be tested. Automated tensile tests on films roboTest F robotic testing system for tensile tests on films • - The system can be added to materials testing machines from 5 to 250 kN. • - The system consists of a traveling axis and a carousel with up to 200 specimen holders. • - Specimens up to 500 g in weight can be tested. • - Specimen holders are available as metal clips, clamps, or magnets. • - Freely positionable servo axes allow the carousel to be equipped as required with a wide range of specimen holders. In addition to metal specimens, non-rigid films and textiles, thin metal, or carbon-fiber wires, and structural steel can be placed in the magazine. • - Manual tests can be performed whenever required—the specimen feeder simply swings out of the way for access. • - An industrial controller with autoEdition3 automation software controls the system. • - Optional components including a HOST connection complete the system.
