HALDER clamping

Clamping force: 20 kN

... sub-part clamp and the sub-part stop enable workpieces to be clamped on the front face. This allows the full area of the machine table to be used to clamp the workpiece. Hold-down effect due to inclined ...

The floating clamp is used to clamp and support additional clamping points on components. The benefits of the floating clamp are: Avoids vibration during the ...

... Floating clamps with separate clamping and locking are used to clamp and support additional clamping points on extremly pliable workpieces. Both, clamping ...

Clamping force: 2.6 kN - 22 kN

Pitbull® Clamps_Drawings Pitbull® clamps for low mounting height with a high clamping force and down hold effect. The O-ring serves to lift the clamp off when releasing. Material Body Steel, ...

Clamping force: 3.5 kN - 10 kN

For clamping and centering of workpieces with internal bore. Exact self centering with a precision of ±0,025 mm. Due to the clamping segments being ground, workpieces with raw and/or machined surfaces ...

Clamping force: 3.5 kN - 12.5 kN

... ground clamping elements. The centering clamping element is characterised by large setting ranges and a compact construction height. Mounting from either top or bottom. Material Body Tool steel, ...

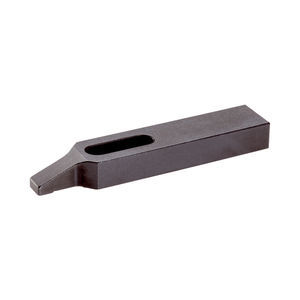

This clamp (clamping claw) with nose is mainly used in mechanical clamping technology for clamping workpieces. Material Heat-treated steel, tempered, blackened

The EH 23700 Series of Clamp, manufactured by HALDER, is specifically designed in steel and blackened design. Its wearing parts are heat-treated, and is available in pull-rod of special steel. Material Body Steel, blackened Wearing ...

Clamping force: 7 kN - 21.5 kN

By tightening the ball-ended thrust screw the workpiece is simultaneously pressed towards the stops and fixture plate. The favourable leverage enables high horizontal clamping forces. When using T-Nuts ...

... mechanical clamping element for fast and comfortable changing and clamping of workpieces by means of manually swivelling clamping claw. The down-thrust clamps provide ...
