HALDER clamping elements

Clamping force: 20 kN

... sub-part clamp and the sub-part stop enable workpieces to be clamped on the front face. This allows the full area of the machine table to be used to clamp the workpiece. Hold-down effect due to inclined ...

Clamping force: 2.6 kN - 22 kN

Pitbull® Clamps_Drawings Pitbull® clamps for low mounting height with a high clamping force and down hold effect. The O-ring serves to lift the clamp off when releasing. Material Body Steel, ...

Clamping force: 3.5 kN - 10 kN

... building height are a feature of the centering clamping element. Mounting from either top or bottom. Material Body Tool steel, hardened, blackened Spring stainless steel Clamping ...

Clamping force: 3.5 kN - 12.5 kN

... ground clamping elements. The centering clamping element is characterised by large setting ranges and a compact construction height. Mounting from either top or bottom. Material Body Tool ...

Clamping force: 15, 25 kN

... compact clamps are all purpose clamping elements. Due to the self-locking tension lever application can either take place in horizontal or vertical position in both, machined and raw ...

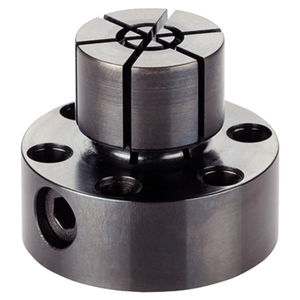

For clamping and centering of workpieces with internal bore. Material Body Steel, blackened Clamping screw Case-hardened steel, case-hardened Assembly The centering clamping ...

Clamping force: 20 kN

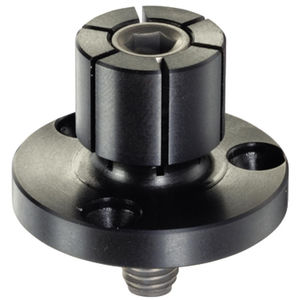

For clamping and centering of workpieces with internal bore. Material Body Steel, blackened Clamping screw Heat-treated steel Assembly The centering clamping mandrel can ...

Material Steel, case-hardened, ground Notes RoHS compliant REACH compliant Free of conflict minerals

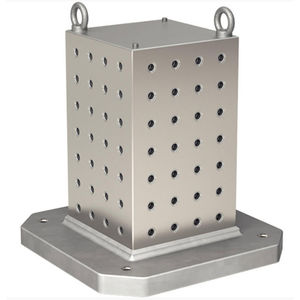

Material Grey cast iron GG Notes Special types on request.

Clamping force: 30,000 N

Material Steel, case-hardened, ground Further products Connecting Rings Coverings, for connecting elements Pressure Amplifier
