Pico Electronics single-output DC/DC converters

Input voltage: 5 V - 48 V
Output voltage: 3.3 V - 250 V
Power: 1.25, 1 W

The A & SM series are unregulated DC-DC converters in an ultra-miniature encapsulated package – 0.500″ x 0.500″ footprint. Over 200 models are available in both single ...

Input voltage: 3, 9, 12 V
Output voltage: 3.3 V - 15 V
Power: 0.65, 0.75 W

The AT/SAT and DT/SDT series are unregulated DC-DC converters in an ultra-miniature low profile encapsulated package – 0.200″ height. Single and dual output ...

Input voltage: 5, 12, 15, 24, 28 V
Output voltage: 3.3 V - 500 V
Power: 1, 1.25 W

The M & MV series are unregulated DC-DC converters with upgraded MIL screened / qualified components and expanded operating temperature range. The epoxy insulated shielded case is in ...

Input voltage: 5 V - 48 V
Output voltage: 3.3 V - 48 V
Power: 1.5 W - 2.5 W

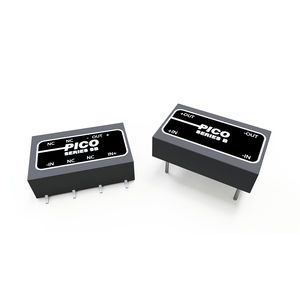

The B & SB series are unregulated DC-DC converters in an ultra-miniature encapsulated package – 1.12″ x 0.7″ footprint and low profile – 0.3″. Over 180 models are available in both single ...

Input voltage: 5 V - 48 V
Output voltage: 3.3 V - 48 V
Power: 2.5, 3, 4 W

The C & SC series are unregulated DC-DC converters in an ultra-miniature encapsulated package – 1.24″ x 1.12″ footprint and low profile – 0.3″. Over 180 models are available in both single ...

Input voltage: 5 V - 48 V
Output voltage: 3.3 V - 48 V
Power: 3.5 W - 7 W

... SE series are unregulated DC-DC converters in an ultra-miniature encapsulated package – 1.43″ x 1.24″ (single) or 2″ x 1.12″ (dual) footprint and low profile – 0.4″. ...

Input voltage: 15, 12, 5, 28, 24 V
Output voltage: 15, 5, 12 V
Power: 1, 0.75, 0.25, 0.35 W

... series are isolated DC-DC converter with tight regulation, low ripple and low profile – 0.300″ height. These modules are excellent for applications where the input voltage is constant ...

Input voltage: 5 V - 36 V
Output voltage: 3.3 V - 28 V
Power: 0.75 W - 2.5 W

The MR series are regulated DC-DC converters with upgraded MIL screened / qualified components and expanded operating temperature range. The 6-sided epoxy insulated shielded case is in ...

Input voltage: 5 V - 36 V
Output voltage: 3.3 V - 28 V
Power: 0.75 W - 2.5 W

The OR & SOR series are isolated/regulated DC-DC converters with wide input range, tight regulation in a low profile package and feature shutdown control. Single and ...

Input voltage: 5, 12, 15, 24, 28 V
Output voltage: 2 V - 15 V
Power: 1 W - 4.5 W

... isolated DC-DC converter with tight regulation, low ripple and low profile – 0.350″ height. These modules are excellent for applications where the input voltage has some variation and ...
