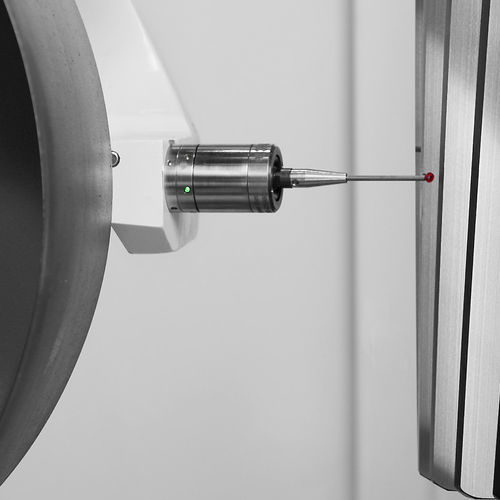

Hard-wired touch probes for turning and grinding machines for automatic inspection of workpiece contours for machining errors. Exact measurement of workpiece position using digital measurement, extreme reduction in measuring time using cyberspeed, analogue scanning process.

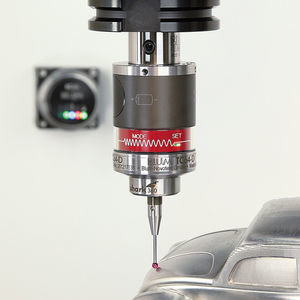

TC76-DIGILOG touch probe – One system, two technologies, thousands of measuring values
Future-oriented DIGILOG technology
•Detection of machining errors caused by analogue scan process in the machining centre
•Comparative measurement between master part and workpiece
•No production of NOK-parts due to downstream, external measurements
•Immediate rework in the original setting is possible
•Massive reduction of the measuring time when evaluating surfaces
shark360 DIGILOG measuring mechanism
•High-precision, face-geared measuring mechanism
•Wear-free, optoelectronic signal generation
•Defined deflection direction and constant deflection forces
•Extremely fast measurements
•Maximum measuring accuracy even with off-centre probing
•High measuring resolution for maximum precision and safety
