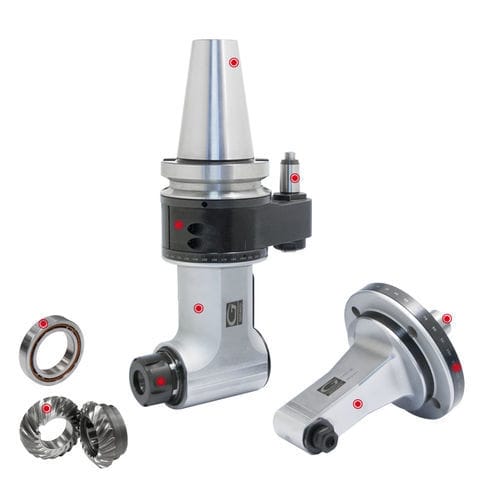

Cabeçote angular 90° Classic Line
0 - 90°para dispositivo de usinagemde fresagem

cabeçote angular 90°
cabeçote angular 90°
cabeçote angular 90°
cabeçote angular 90°
Guardar nos favoritos
Comparar


Características

Tipo
90°, 0 - 90°
Aplicações
para dispositivo de usinagem, de fresagem, para a indústria, para peças longas
Outras caraterísticas
compacto, pinça ER, modular, CAPTO, completo
Velocidade de rotação

MÁX: 12.000 rpm
(75.398,22 rad.min-1)

MÍN: 3.000 rpm
(18.849,56 rad.min-1)

Torque

MÁX: 400 Nm
(295,02 ft.lb)

MÍN: 1 Nm
(0,74 ft.lb)

Descrição

The new Classic line of Gerardi angle heads has been designed from a technical base derived from 40 years experience of solving thousands of production problems, finding optimum solutions and always guaranteeing the highest product quality. More than 90 standard angle head types are now offered, designed, built and distributed in more than 50 countries the world over by Gerardi S.p.A., and available with a range of options to complete their application and performance potentials. The Compact design, along with mentioned specifications, allows: highest performances, high speeds, long tools life. Identify your Angle Head with our worksheet ATC series This range of heads is designed to be used on machining centres and can be automatically tranferred from the tool magazine to the machine spindle and back. A major feature of the ATC serie is the main input shaft which is integral with the drive taper to ensure maximum rigidity. MTC series This is a range of heads for traditional machine tools with flange attachment. The modular system makes it possible to extend the lenght of the body by additing a spacer.

VÍDEO
